Viin Map View
Interactive map view for locations and routes with flexible configurations.
Key Features
Built natively on Odoo/Viindoo to streamline real business operations:
Location Display
Markers for records with latitude and longitude.
Routing Support
Visualize routes between waypoints with optional polylines.
Customizable Popups
Define information displayed in marker popups.
Flexible Providers
Compatible with OpenStreetMap, Google, Mapbox, and HERE.
Demo Video
Viin Map View.
See Viin Map View in Action
See how this module solves real business problems in a working Viindoo environment.
Need help with Viin Map View?
For questions, implementation support, or consulting services, contact Viindoo.
Pre-Sales & Partnership
When contacting us, please include:
- Odoo/Viindoo version (Odoo CE / Viindoo Editions).
- Number of users and business scope.
- Other modules currently in use.
Technical Support
For faster troubleshooting, please provide:
- Order number or app reference.
- Odoo/Viindoo version & edition.
- Steps to reproduce the issue.
- Screenshots/logs if available.
Technical Requirement
Changes log
We continuously improve this module. Recent updates from the official Viindoo repository:
- 2026-02-15 Fixed Prevent geo-localization cron storm when OSM blocks.
- 2025-12-04 Fixed Avoid crashing when no lat/long available.
- 2024-12-06 Improved Now support real map route using polyline by map providers.
- 2024-11-26 Improved Remove res.partner override.
Works Great With These Modules
Extend Viin Map View with complementary Viindoo apps:
Contacts Map
Adds notably the map view of contacts
Module viin_contacts_mapViin CRM
Advanced features for CRM
Module viin_crmEmployees Map
View employees in map view
Module viin_employee_mapGeo Route Map
Display geo-optimized routes on interactive Viindoo web maps
Module viin_geo_route_mapViin Warehouse
Advanced Warehouse features
Module viin_stockWho Should Use This Module?
Built for teams that need this capability fully integrated into their Odoo/Viindoo stack.
Executives & Business Owners
Need clear visibility into operations and a stack that scales without bespoke development.
Operations / Department Leaders
Want to streamline daily workflows, remove manual handoffs, and keep data consistent across teams.
Implementers & Odoo Partners
Looking for production-ready Viindoo modules to deliver projects faster and at lower risk.
viin_web_map Documentation
Overview
The viin_web_map module allows you to integrate interactive maps into your Odoo system. It provides functionality for displaying locations and routes directly on the map, making it ideal for location-based applications. The module allows you to configure and visualize both individual locations (using markers) and routes (using waypoints).
Key Features
- Location Display: Display location data using markers on the map.
- Route Visualization: Visualize routes between multiple waypoints.
- Customizable Popups: Customize the information shown in map marker popups.
- Google Directions: Optionally show directions using the Google Directions API.
- Automatic Polyline Generation: Polyline is automatically generated from waypoints if not explicitly defined.
- Flexible Configuration: Easily configure and extend the map to suit your needs.
Installation
Install the viin_web_map module via the Odoo Apps interface or using the following command:
odoo-bin -c <config_file> -i viin_web_map

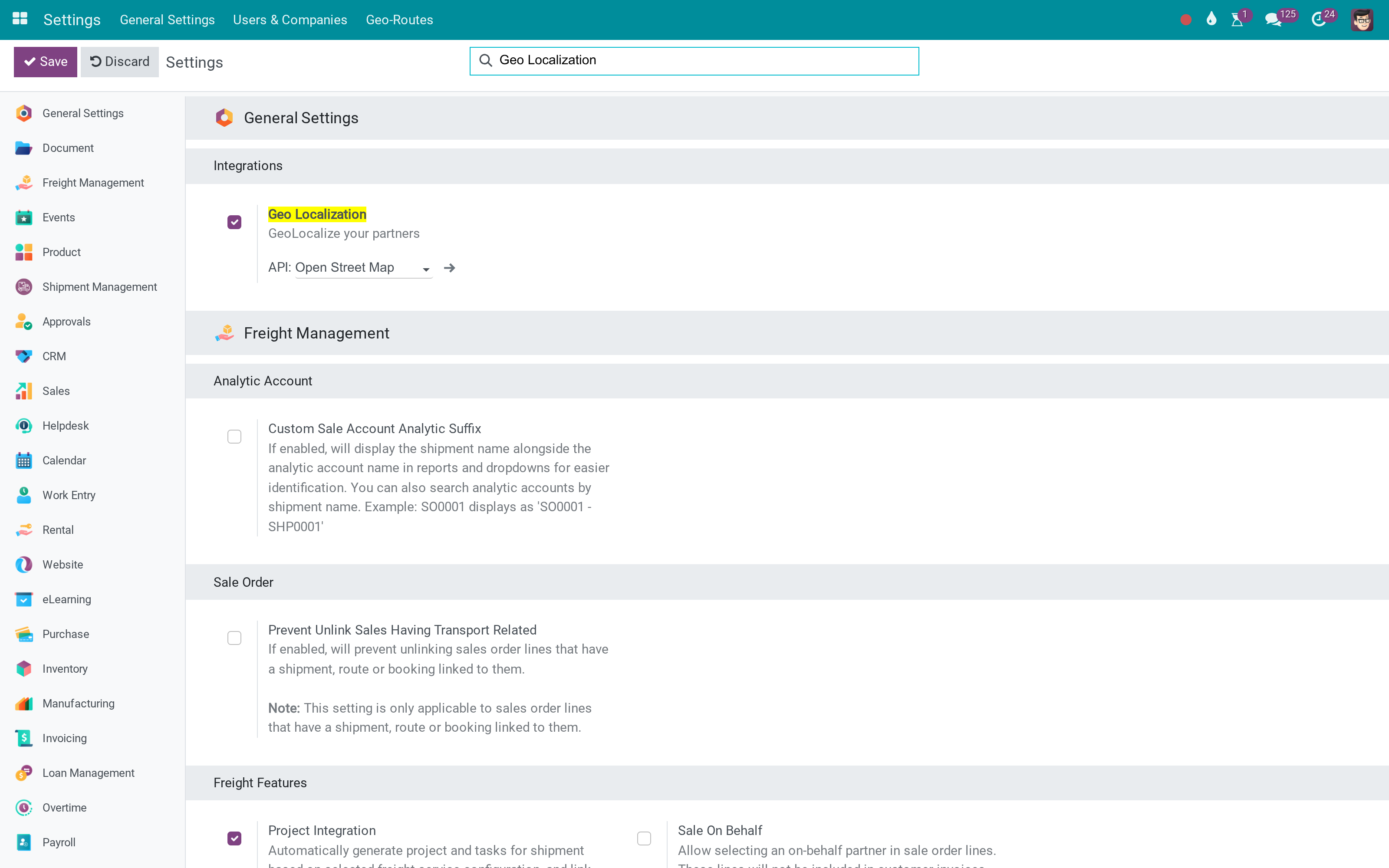

Configure the Maps API key for one of the map service providers - Mapbox, Google, or HERE - if you want to use the location services provided by them.
Usage
Configuring the viin_map View
The viin_map view can be used to display locations or routes on the map. Below are examples of how to configure the view for different use cases.
### Displaying Location Data

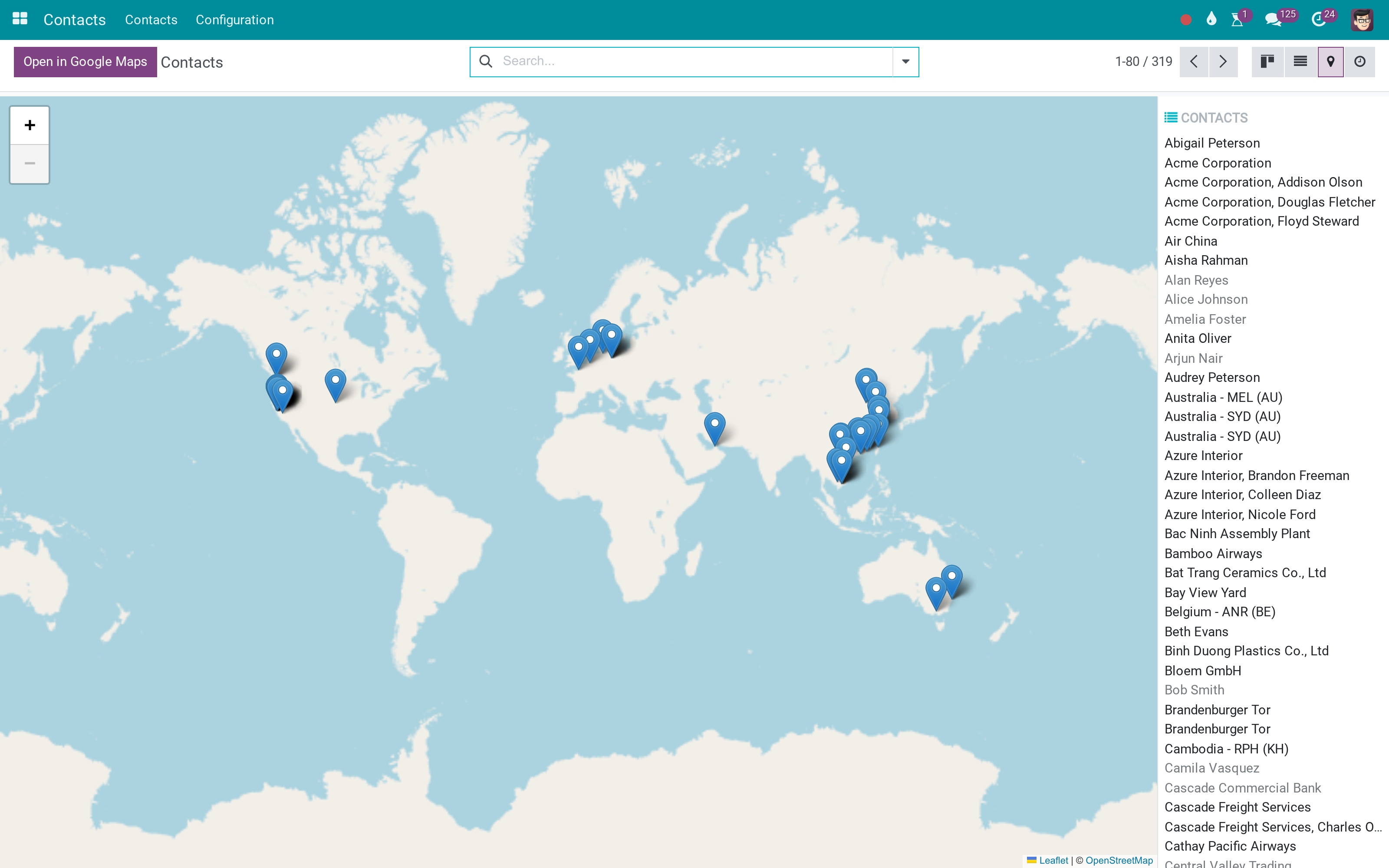

To display locations as markers on the map, you can configure the viin_map view for a model like res.partner. The view will display each partner as a marker on the map with relevant information shown in a popup.
Example of a viin_map view displaying locations:
<record id="res_partner_view_map" model="ir.ui.view"> <field name="name">res.partner.view.map</field> <field name="model">res.partner</field> <field name="arch" type="xml"> <viin_map res_partner="id"> <marker-popup> <field name="name" string="Name"/> <field name="mapping_address" string="Address"/> </marker-popup> </viin_map> </field> </record>
Explanation: - res_partner="id": The map uses the id field from the res.partner model to locate the partner on the map. - marker-popup: Specifies the fields to show in the marker popup, in this case, the partner’s name and mapping_address.

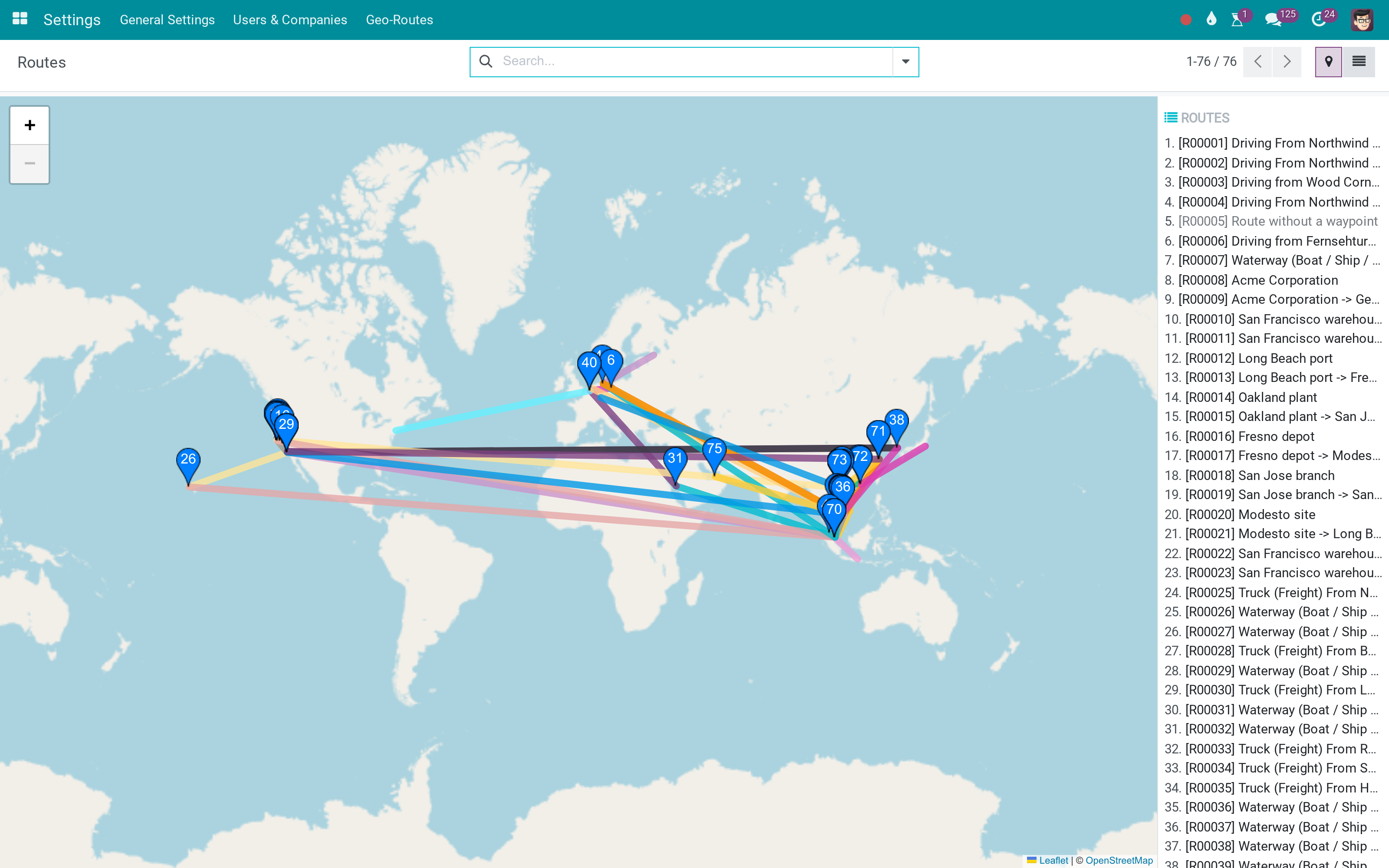

### Displaying Routes
To display a route between multiple waypoints, you can configure the viin_map view with the routing="true" attribute. If the polyline field is not explicitly defined, it will be automatically generated from the waypoints.
Example of a viin_map view displaying a route:
<record id="view_route_route_map" model="ir.ui.view"> <field name="name">route.route.viin_map</field> <field name="model">route.route</field> <field name="arch" type="xml"> <viin_map res_partner="address_from_id" routing="true" waypoint_field="waypoint_ids" polyline_field="polyline"> <field name="waypoint_ids" /> <field name="polyline" /> <marker-popup> <field name="code" string="Ref."/> <field name="mapping_address" string="Instructions"/> </marker-popup> </viin_map> </field> </record>
Explanation: - routing="true": Enables the route functionality, allowing the map to display a route between multiple waypoints. - waypoint_field="waypoint_ids": Defines the field that holds the list of waypoints used to calculate the route. - polyline_field="polyline": Optional. If omitted, the polyline will be auto-generated from the waypoints. - field name="waypoint_ids": Displays all the waypoints on the map.
### Automatically Generating Polyline from Waypoints
When you configure a route with waypoints but do not specify a polyline field, the polyline is automatically generated based on the coordinates of the defined waypoints. This allows you to visualize the route without manually defining the polyline.
Example:
<record id="view_route_route_map_auto_polyline" model="ir.ui.view"> <field name="name">route.route.viin_map.auto_polyline</field> <field name="model">route.route</field> <field name="arch" type="xml"> <viin_map res_partner="address_from_id" routing="true" waypoint_field="waypoint_ids"> <field name="waypoint_ids" /> <marker-popup> <field name="code" string="Ref."/> <field name="mapping_address" string="Instructions"/> </marker-popup> </viin_map> </field> </record>
### Required Fields for Routing
When using routing="true", the following fields are required: - waypoint_field: Defines the waypoints for the route. - res_partner: Always mandatory in all viin_map views.
If polyline_field is not specified, it is automatically generated from the waypoints.
Error Handling
Ensure all required fields are defined in the viin_map view. Missing required fields, such as waypoint_field, will result in validation errors.
Customizing the Map View
You can customize the map by adding or modifying fields in the marker-popup or by introducing additional attributes to the viin_map tag.
Example of a custom map view:
<record id="view_custom_route_map" model="ir.ui.view"> <field name="name">route.route.custom_map</field> <field name="model">route.route</field> <field name="arch" type="xml"> <viin_map res_partner="address_from_id" routing="true" waypoint_field="waypoint_ids"> <field name="waypoint_ids" /> <field name="custom_field" string="Custom Info"/> <marker-popup> <field name="code" string="Ref."/> <field name="mapping_address" string="Instructions"/> <field name="custom_field" string="Additional Information"/> </marker-popup> </viin_map> </field> </record>
